When your project demands tight tolerances, clean welds, and consistent mechanical properties, HFW steel pipe is often the answer.If your application doesn't require seamless-grade pressure ratings, HFW delivers better precision at lower cost.

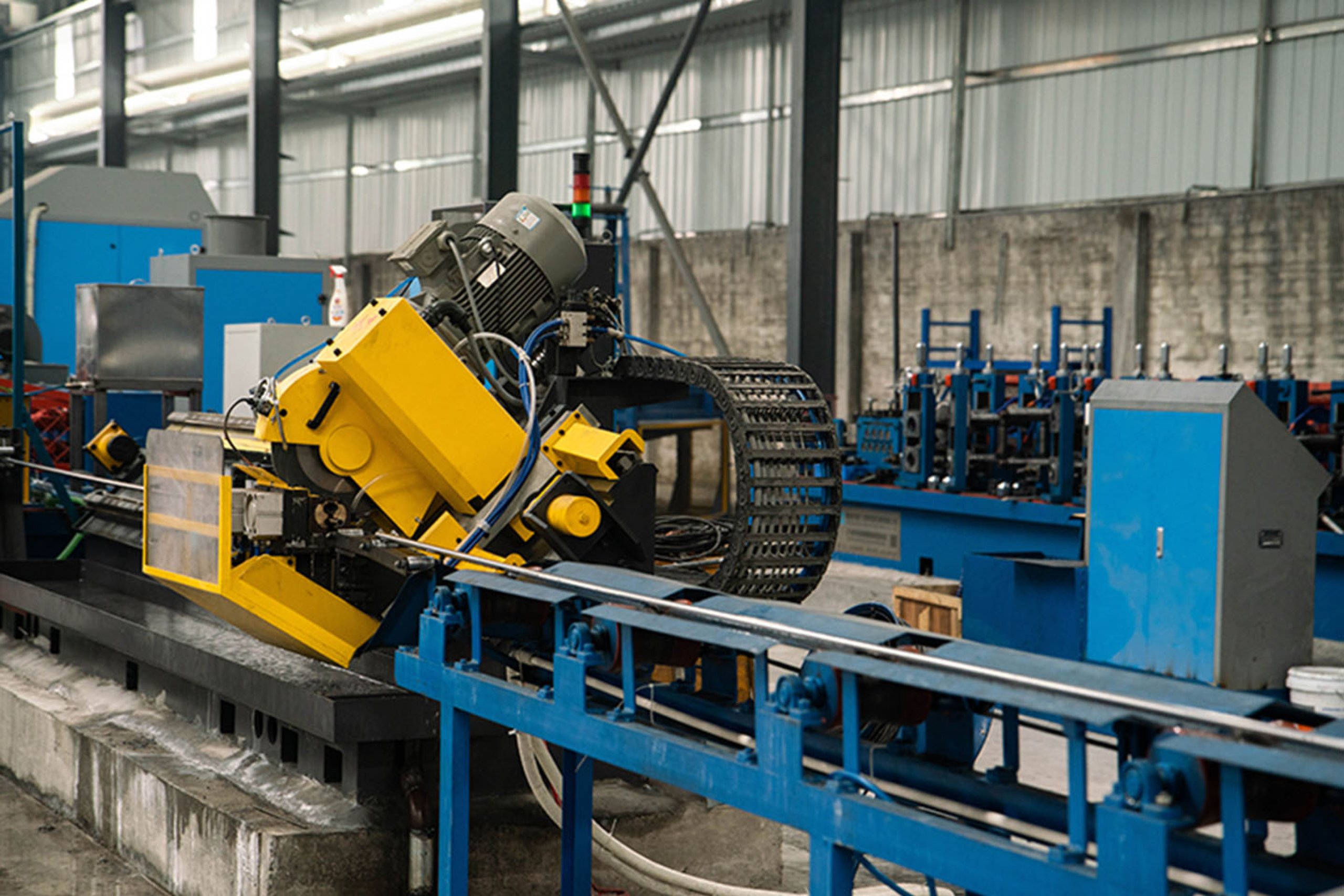

What Is HFW (High-Frequency Welded) Steel Pipe?
HFW steel pipe is manufactured by bending steel strip into a tubular shape and applying high-frequency alternating current to heat the edges to welding temperature in milliseconds. The molten edges are then squeezed together under pressure, forming a solid-state bond — no filler metal, no slag, no flux.
This process is driven by two physical principles:
Skin effect — high-frequency current concentrates on the surface of the conductor
Proximity effect — current concentrates on the closest edges of the strip
The result: a clean, narrow, high-integrity weld that matches the mechanical properties of the base metal.
HFW vs ERW vs Seamless: Which One to Choose?
| Property | HFW / ERW | Seamless |
| Dimensional tolerance | ✅ ±0.05mm | ⚠️ ±0.2mm |
| Surface quality | ✅ Smooth, no slag | ⚠️ Rougher ID |
| Cost | ✅ 20-40% lower | ⚠️Higher |
| Lead time | ✅ Shorter | ⚠️Longer |
| Weld integrity | ✅ Full bond, tested 100% | N/A (no weld) |
| Best application | ✅Precision structural & mechanical | Extreme pressure/temperature |
Why HFW Is the Right Choice for Precision Applications
1. Tight Dimensional Accuracy (±0.05mm)
HFW pipe can hold OD tolerances of ±0.05mm — essential for automotive driveshafts, fitness equipment frames, and furniture where parts must fit without adjustment.
2. Clean Weld Zone — No Post-Processing Needed
No slag, no spatter, minimal heat-affected zone. Internal weld bead can be removed (skelped) for applications requiring a smooth ID — hydraulic cylinders, fluid handling, and decorative tubes.
3. Consistent Mechanical Properties
The weld zone strength matches the base metal in most carbon and low-alloy steel grades. HFW pipe bends, flares, and flattens without cracking — critical for downstream forming.
4. Excellent Surface Finish
HFW pipe accepts painting, powder coating, or electroplating directly — no grinding or surface prep required. This saves time and cost in your production line.
5. Cost-Effective at Any Scale
High welding speeds (20-60 m/min depending on wall thickness) mean competitive pricing. Whether you need 100 or 100,000 pieces, HFW is the economical choice.
Common Applications by Industry
| Industry | Application Examples |
| ????️ Fitness Equipment | Frame tubes, roller rubes, handlebars |
| ???? Automotive | Car seats, Stabilizer bar, Exhaust pipes |
| ???? Furniture Machinery | Chair frames, table legs, shelving |
| ???? Machinery | Telescopic tube assembly |
| ???? Agriculture | Feeding lines |
Quality Control: How We Ensure Every Pipe Is Right
At Winco Steel, every HFW pipe passes multiple inspection stages:
✅ Raw material verification — chemical composition and mechanical properties before production
✅ 100% eddy current testing — real-time surface and near-surface defect detection inline
✅ Ultrasonic testing — random sample weld integrity verification
✅ Flattening & flare tests — confirms ductility and weld soundness
✅ Hydrostatic pressure test — validates pressure rating per specificatio
Why Choose Winco Steel for Your HFW Pipe Supply?
✅ 35+ years of precision steel tube manufacturing since 1989
✅ 7 production lines | OD range: 17mm - 273mm | Wall: 0.8mm - 12mm
✅ Custom shapes — round, square, rectangular, and special sections
✅ Secondary processing — cutting, deburring, threading, bending, punching
✅ Surface finishes — black, galvanized, pre-painted, powder-coated, polished
✅ Exported to 80+ countries — we know international logistics
✅ Sample service — first-article approval before mass production
Need precision HFW steel pipe for your next project? Contact us for a quote or technical datasheet.
