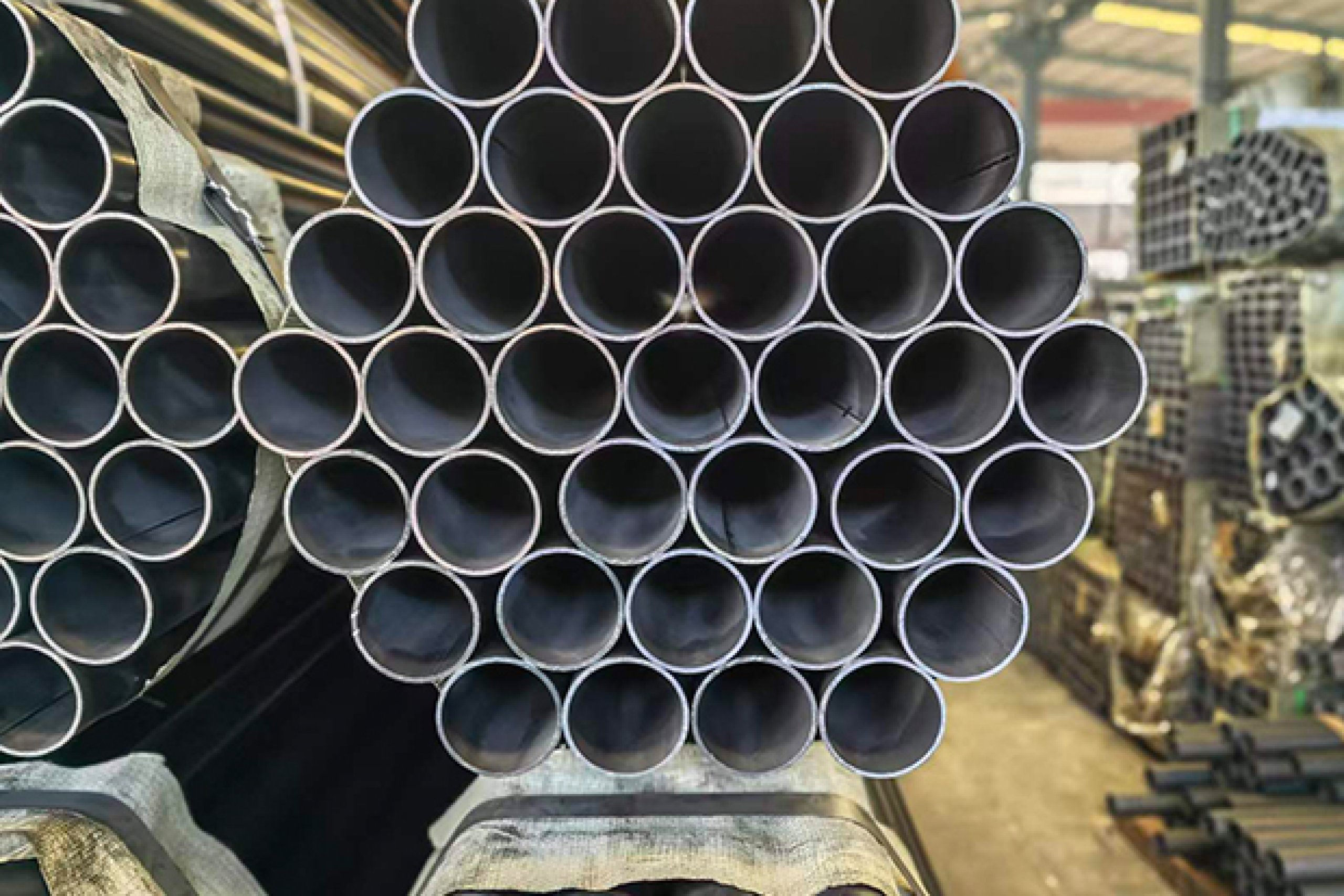

Welded Tube Dimensional Precision: What Tolerances Mean for Your Assembly Line

POSTED ON: Jul 31, 2026 | WRITTEN By :

Category: Technical Guide

Read time: 7 min

Keywords: welded tube tolerance, steel tube dimensional accuracy, square tube tolerance, fitness equipment tube spec, precision welded tube

Why Your Jigs Won't Fit

If your assembly jig is designed for 50×50mm square tube, and the tube you receive is 49.2mm on one side and 50.4mm on the other, the jig won't fit. Your welder shims it. The next batch is different. Production slows down. This is a tolerance problem.

What Tolerances Mean in Practice

Outside Dimension (OD) Tolerance

Spec	50×50mm Square Tube
Standard commercial	±0.5mm (49.5–50.5mm)
Close tolerance	±0.3mm (49.7–50.3mm)
Precision	±0.15mm (49.85–50.15mm)

For fitness equipment: ±0.3mm is the sweet spot.

Wall Thickness Tolerance

Spec	3.0mm Wall
Standard ERW	±10% (2.7–3.3mm)
Close tolerance	±5% (2.85–3.15mm)

Why it matters: A tube with inconsistent wall thickness will warp after welding — the thicker side contracts more, causing frame distortion.

Straightness

Spec	Curvature
Standard commercial	≤2mm/m
Precision straightened	≤1mm/m

For fitness equipment: ≤1mm/m. A squat rack upright with 2mm/m curvature is visible from arm's length.

Corner Radius

Spec	Corner Radius
Standard	≤2t (2× wall thickness)
Tight	≤1.5t

How Tight Tolerances Are Achieved

· Precision strip — Cold-rolled strip (DC01/ST12) has ±0.05mm wall thickness tolerance

· Roller calibration — Each forming stand calibrated to ±0.05mm

· Sizing section — Dedicated sizing after welding for final OD calibration

· Precision straightening — Six-roll straightener achieves ≤1mm/m

· In-line inspection — Laser micrometers continuously measure OD

Tolerance vs Cost

Tolerance Level	Cost Premium	Application
Standard (±0.5mm)	Base	General structural
Close (±0.3mm)	+5–8%	Fitness equipment frames, telescoping
Precision (±0.15mm)	+15–20%	Guide rails, precision machinery

FAQ

Q: Can square tube achieve ±0.1mm tolerance?

A: Technically yes, but it requires cold drawing after forming. For fitness equipment, ±0.3mm satisfies all standard applications.

Q: What if the tube arrives out of spec?

A: We provide MTC with measured dimensions. Out-of-spec tubes replaced free. Rejection rate <0.5%.

Q: Is every tube inspected?

A: Continuous in-line laser measurement. Manual spot checks every 50 tubes. Batch dimensional report included.

Need tube with guaranteed tolerances? WhatsApp: +8615563988222

4. Steel Tube for Automated Feeding Lines: Material Selection and Surface Treatment Guide

Category: Industry Guide

Read time: 8 min

Keywords: feeding line steel tube, livestock feeding system tubing, galvanized steel tube, auger tube, poultry feeding line tube, swine feeding system

The Feeding Line Environment Corrodes Ordinary Steel

Automated feeding systems for poultry, swine, and cattle operate in environments that corrode unprotected steel within months:

· Ammonia from animal waste attacks bare steel

· Feed acids (especially swine feed) accelerate corrosion

· Moisture from cleaning and condensation causes rust

· 24/7 operation means no downtime for maintenance

Material Selection by Application

Auger Tubes

The auger tube is the most critical tube in the system. It carries feed from the silo to the feeding pan through a rotating spiral.

Parameter	Requirement	Reason
ID tolerance	±0.15mm	Auger spiral must not bind or have excessive clearance
Straightness	≤1mm/m	300m line with 3mm/m curve = 900mm deviation
Inner surface	Smooth, no internal weld bead	Internal weld bead damages auger spiral
Material	Galvanized Q235B or 304 stainless	Feed is corrosive

Common sizes:

· Broiler/pullet: Φ38–45mm OD, 1.5–2.0mm wall

· Layer: Φ45–60mm OD, 1.5–2.5mm wall

· Swine: Φ50–75mm OD, 2.0–3.0mm wall

· Cattle TMR: Φ75–100mm OD, 2.5–4.0mm wall

Critical requirement: Auger tubes must have the internal weld bead removed (ID scarfing).

Drop Tubes and Outlets

· Clean, burr-free cuts — feed catches on rough edges

· Consistent length — ±1mm, ensuring every pan sits at the same height

· Galvanized inside and out — feed moisture causes bare steel to rust within weeks

Support Legs and Frame Tubes

Component	Profile	Size	Surface
Hopper legs	Square tube	40×40 – 50×50mm, 2.0–3.0mm	Hot-dip galvanized
Feed line suspension	Round tube	Φ32–42mm, 2.0–2.5mm	Galvanized
Platform framing	Square tube	50×50 – 60×60mm, 2.5–3.0mm	Galvanized or painted
Silo structure	Rectangular tube	40×60 – 50×100mm, 3.0–4.0mm	Hot-dip galvanized

Galvanized vs Stainless: How to Choose

Factor	Galvanized Q235B	304 Stainless
Cost	Base	4–5×
Corrosion resistance	Good (outdoor 5–10 years)	Excellent (20+ years)
Weldability	Good	Good, requires TIG
Cleanability	Moderate	Excellent
Best for	Poultry (dry feed), outdoor	Swine (wet feed, ammonia), food-grade

Rules of thumb:

· Poultry feeding lines (dry feed, moderate ammonia): Galvanized Q235B

· Swine feeding lines (wet feed, high ammonia): 304 stainless

· Cattle systems (outdoor, weather exposure): Hot-dip galvanized

· Food contact: 304 stainless

Hot-Dip Galvanized: The Correct Spec for Feeding Lines

Zinc Coating	Application
60–120 g/m²	Pre-galvanized (light duty, indoor)
300–600 g/m²	Hot-dip galvanized (heavy duty, outdoor)

Feeding line requirement: Must specify hot-dip galvanized (300+ g/m²). Pre-galvanized will show rust within 12–18 months in swine environments.

Pre-Galvanized vs Post-Galvanized (Hot-Dip)

Method	Process	Coating Uniformity	Cost
Pre-galvanized	Zinc on strip before forming	Good on flats, bare at cuts	Lower
Hot-dip (post)	Tube dipped after forming	Excellent — all surfaces covered	Higher

Feeding line requirement: Must use hot-dip galvanized. Pre-galvanized leaves bare steel at every cut edge and weld joint — exactly where corrosion starts.

Telescoping in Feeding Line Systems

Many feeding line components need to telescope:

· Auger tube sections connect by sleeving

· Drop tubes slide into auger tube outlets

· Support legs telescope for height adjustment

This requires consistent OD tolerance (±0.3mm) and clean, burr-free cut ends.

FAQ

Q: What's the difference between galvanized for indoor vs outdoor feeding lines?

A: Indoor poultry lines use pre-galvanized (60–120 g/m²). Outdoor or swine environments need hot-dip galvanized (300–600 g/m²) or 304 stainless.

Q: Can you provide tube with one end swaged?

A: Yes. We can swage tube ends for telescoping connections. Specify the reduced diameter and length.

Q: What's the lead time for precision tube?

A: Standard cold drawn sizes: 7–15 days. Non-standard or alloy grades: 15–30 days. Stainless: 15–25 days.

Q: Do you provide third-party inspection?

A: Yes. We arrange SGS, BV, or TÜV inspection at our factory before shipment.

Manufacturing feeding line systems? Send your tube specifications. Quote within 24 hours. WhatsApp: +8615563988222
