The fitness equipment industry uses almost 100% welded tube (ERW), not seamless. The reasons are straightforward:
· Lower cost — Welded tube is 30–50% cheaper than seamless
· Sufficient precision — Precision welded tube has ±0.3mm OD tolerance, fully meeting frame assembly requirements
· Good surface — Pickled surface Ra≤3.2μm, suitable for powder coating
· Short lead time — 7–15 days, vs 15–25 days for seamless
Seamless tube is used in only one scenario: components that must withstand high pressure or require precision sliding fit, such as hydraulic cylinder barrels or guide rods. But these components account for less than 5% of a complete fitness equipment unit.
Fitness equipment manufacturers only need to master two steel grades:
Q235B is a hot-rolled structural steel with yield strength ≥235 MPa. The "B" designation means it's impact-tested at +20°C.
Suitable components:
Component | Profile | Wall |
Squat rack uprights | 50×50 – 75×75mm square tube | 2.5–3.5mm |
Bench press frames | 40×60 – 50×70mm rectangular tube | 2.0–3.0mm |
Cable machine arms | Flat oval tube (various) | 2.0–3.0mm |
Base frames | 50×50 – 60×60mm square tube | 2.5–3.0mm |
Power rack uprights | 50×50 – 60×60mm square tube | 2.5–3.0mm |
Dumbbell racks | 40×40 – 50×50mm square tube | 1.5–2.0mm |
Weight plate storage pegs | Φ25–50mm round tube | 2.0–3.0mm |
Frame connectors | 30×30 – 40×40mm square tube | 2.0mm |
Why must it be Q235B, not Q235A?
Q235A has no impact toughness requirement. A squat rack is loaded and unloaded thousands of times daily — Q235A may crack under dynamic loading. Q235B guarantees impact toughness at +20°C, providing a higher safety margin.
SPHC is a hot-rolled pickled steel sheet. "Pickled" means the mill scale has been removed in an acid bath, leaving a clean surface suitable for bending.
Suitable components:
Component | Profile | Why SPHC |
Pull-up bars | Φ28–32mm round tube, 2.0–3.0mm | Needs to be bent into curves |
Smith machine guide rails | Φ25–30mm round tube | Requires precise bend radius |
Flat oval handles / grips | Flat oval tube | Requires oval forming from round tube |
Curl bar frames | Φ25–28mm round tube | Tight-radius bending |
Adjustable bench tracks | 20×40mm rectangular tube | Requires forming |
Decorative frame elements | Various profiles | Requires shaping |
Why can't Q235B be bent?
Q235B is high-hardness, low-ductility. At tight bend radii (<3× tube diameter), the outer wall will crack and the cross-section will deform. SPHC is specifically designed for forming operations — it bends without cracking.
The standard surface treatment for fitness equipment is powder coating. Matte black, matte grey, textured finishes — these coatings are all thin (60–80μm) and cannot hide any surface defects.
Surface problems that cause coating failures:
Defect | Cause | Consequence |
Mill scale | Hot-rolled surface not pickled | Coating peels off in sheets |
Rust spots | Moisture exposure after rolling | Orange bleed-through under coating |
Deep scratches | Rough handling during transit | Visible lines under coating |
Oil residue | Excessive rust-preventive oil | Coating adhesion failure |
Solution:
· SPHC is pickled by definition — ready to use
· Q235B can be ordered pickled (specify "pickled Q235B" or "Q235B-P")
· Surface roughness Ra≤3.2μm
· No rust, no oil film
Many fitness equipment components need to telescope or sleeve together:
· Adjustable squat rack safety pins slide inside uprights
· Pull-up bars insert into rack uprights
· Weight plate pegs insert into rack holes
· Adjustable bench leg tubes telescope
This requires two conditions:
1. Consistent OD tolerance — If a 50×50mm square tube is 49.3mm on one batch and 50.2mm on the next, the telescoping fit changes. Specify ±0.3mm.
2. Standard cross-section shape — Square tube must be truly square. If the cross-section is slightly rhomboid, it won't telescope.
Specifications for telescoping applications:
Parameter | Standard | Precision |
OD tolerance | ±0.5mm | ±0.3mm |
Wall tolerance | ±10% | ±5% |
Corner radius | ≤2t | ≤1.5t |
Straightness | ≤2mm/m | ≤1mm/m |
Cross-section squareness | ≤0.5° | ≤0.3° |
A fitness equipment factory producing 500 squat racks per month:
Factor | Cheap Commercial ERW | Specified Q235B/SPHC |
Tube cost per rack | Base | +12% |
Coating reject rate | 8–15% | 1–3% |
Assembly rework rate | 5–10% | <1% |
Warranty claims (12 months) | 15–20 | 2–3 |
Total cost per unit | Higher | Lower |
Spending 12% more on tube quality saves 3–5× that amount in coating rejects, rework, and warranty costs.

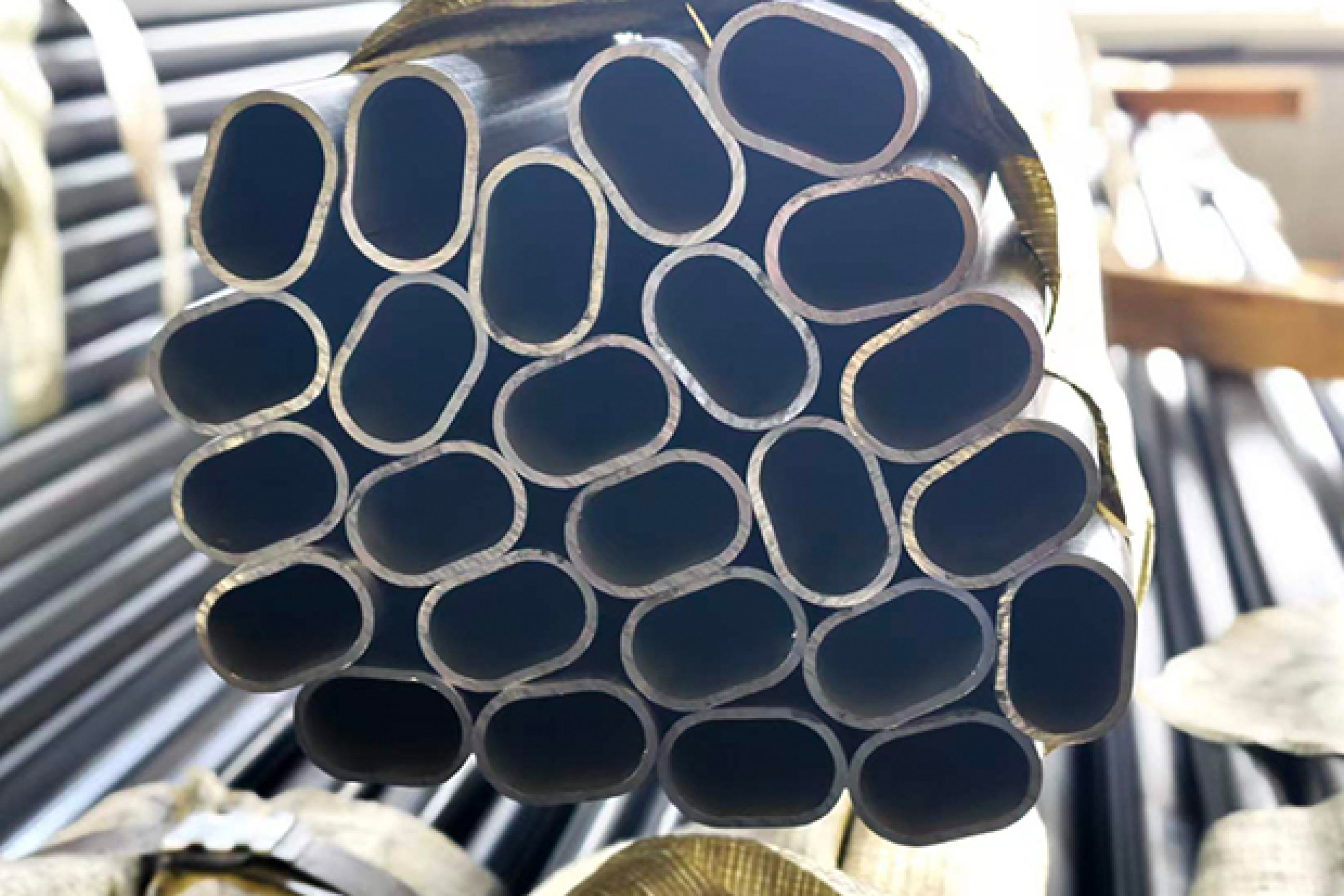

Flat oval tube (also called elliptical tube or oval tube) is a specialized profile increasingly popular in fitness equipment design. It combines the structural strength of round tube with an ergonomic shape that fits the human hand.
Common applications:
· Handle bars and grips — more comfortable than round tube, distributes pressure across the palm
· Cable machine arms — aesthetically pleasing, modern design look
· Seat and backrest frames — wider contact surface for padding
· Decorative frame elements — distinctive visual profile
Flat oval tube is typically made from Q235B or SPHC round tube, then formed into oval shape through a cold forming process. The tube retains the wall thickness and material properties of the original round tube.
Typical specifications:
Application | Size (Major × Minor) | Wall |
Handle bars | 50×25 – 60×30mm | 2.0–2.5mm |
Cable machine arms | 60×30 – 80×40mm | 2.5–3.0mm |
Seat frames | 70×30 – 100×40mm | 2.0–3.0mm |
Surface: Same as other fitness tube — pickled or shot-blasted for powder coating. The oval shape can make coating slightly more challenging at the tight-radius ends, so clean surface is especially important.
1. "Does this tube need to be bent?"
· Yes → SPHC (or equivalent grades DD11, DC01)
· No → Q235B
2. "Does this tube surface need powder coating?"
· Yes → Pickled surface, Ra≤3.2μm
· No (galvanized, painted, enclosed in assembly) → Standard hot-rolled surface is fine
3. "Does this tube need to telescope or sleeve?"
· Yes → OD tolerance ±0.3mm, cross-section squareness ≤0.3°
· No → Standard tolerance ±0.5mm is sufficient
Mistake 1: Writing only "Q235" without grade
Q235 has four grades: Q235A, Q235B, Q235C, Q235D. The difference is low-temperature impact toughness. Correct practice: Minimum requirement Q235B, guaranteeing +20°C impact toughness.
Mistake 2: Ignoring wall thickness tolerance
Standard ERW wall thickness tolerance is ±10%. A 3.0mm wall may actually be 2.7–3.3mm. For fitness equipment tight-fit connectors, 0.6mm variation means loose fits. Correct practice: Specify ±5% wall thickness tolerance.
Mistake 3: Not specifying straightness
Standard commercial tube allows 2mm/m curvature. A squat rack upright with 2mm/m bend is visible to the naked eye. Correct practice: Specify ≤1mm/m straightness.
Q: Can I use SPHC for everything?
A: You can, but it's unnecessary. SPHC costs 5–8% more than Q235B. Components that don't need bending are more economical in Q235B.
Q: Can fitness equipment use galvanized tube?
A: Indoor fitness equipment typically uses powder coating over bare steel. Pre-galvanized tube adds cost and the zinc layer may affect coating adhesion unless primed. Outdoor fitness equipment (park installations) can use hot-dip galvanized + powder coating.
Q: Can you provide pre-cut tubes labeled with part numbers?
A: Yes. We cut to length with ±1mm tolerance, deburr both ends, and label each piece with its part number.
Q: What's the minimum order for custom sizes?
A: Standard profiles start at 500kg. Custom profiles require 3–5 tons. We can run small trial batches for validation.
